Baget86 SysProfile

CPU

Intel® Core™ i9-9900KF

Code name

Coffee Lake

Architecture

1 CPU - 8 Core - 16 Threads

Revision

Technology

14 nm

Family / Model / Stepping

6.E.D / 6.9E

Instructions

MMX, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4.2, EM64T, VT-x, AES, AVX, AVX2, FMA3, TSX

Socket

Socket 1151 LGA

Core frequency

4700 MHz

Bus speed

100 MHz

Multiplier

Cache frequency

4300 MHz

Level 1 cache

32 KB 8-way

Level 2 cache

256 KB 4-way

Level 3 cache

16384 KB 16-way

Voltage

Core Offset: -100 mV; VCCSA = 1.15; VCCIO = 1.1375

Temperature

Idle: 27±3℃; Games: 50±10℃; Prime95 Small FFTs (205 W): 80℃

Cooling

Liquid cooler: Arctic Cooling Liquid Freezer II-360; Thermal paste: CoolerMaster MasterGel Maker

CPU-Z version

2.09.0 (64 bit)

CPU-Z validation

Motherboard

Asus ROG MAXIMUS IX APEX

Chipset

Intel Z270

Northbridge

Intel Coffee Lake rev 0D

Southbridge

Intel Z270 rev 00

BIOS version

American Megatrends Inc. 2603 (04/14/2021)

Cooling

Stock + ReCold Backplate (Photo #2, #3)

RAM

2 x 16384 MB [Crucial Ballistix] P/N: BL16G36C16U4BL.M8FB1

Capacity

32768 MB

Type

Dual Channel (128 bit) DDR4-SDRAM

Timings

16-18-18-36-2 (tCAS-tRCD-tRP-tRAS-tCR)

Real frequency

2000 MHz (DDR4-4000)

Effective frequency

4000 MHz

Multiplier

3:60

Read/Write/Copy speed

59785/60511/54607 [MB/s]

Access speed

38.2 ns

Voltage

1.37 V

Temperature

Idle: 37℃. Load: 45℃

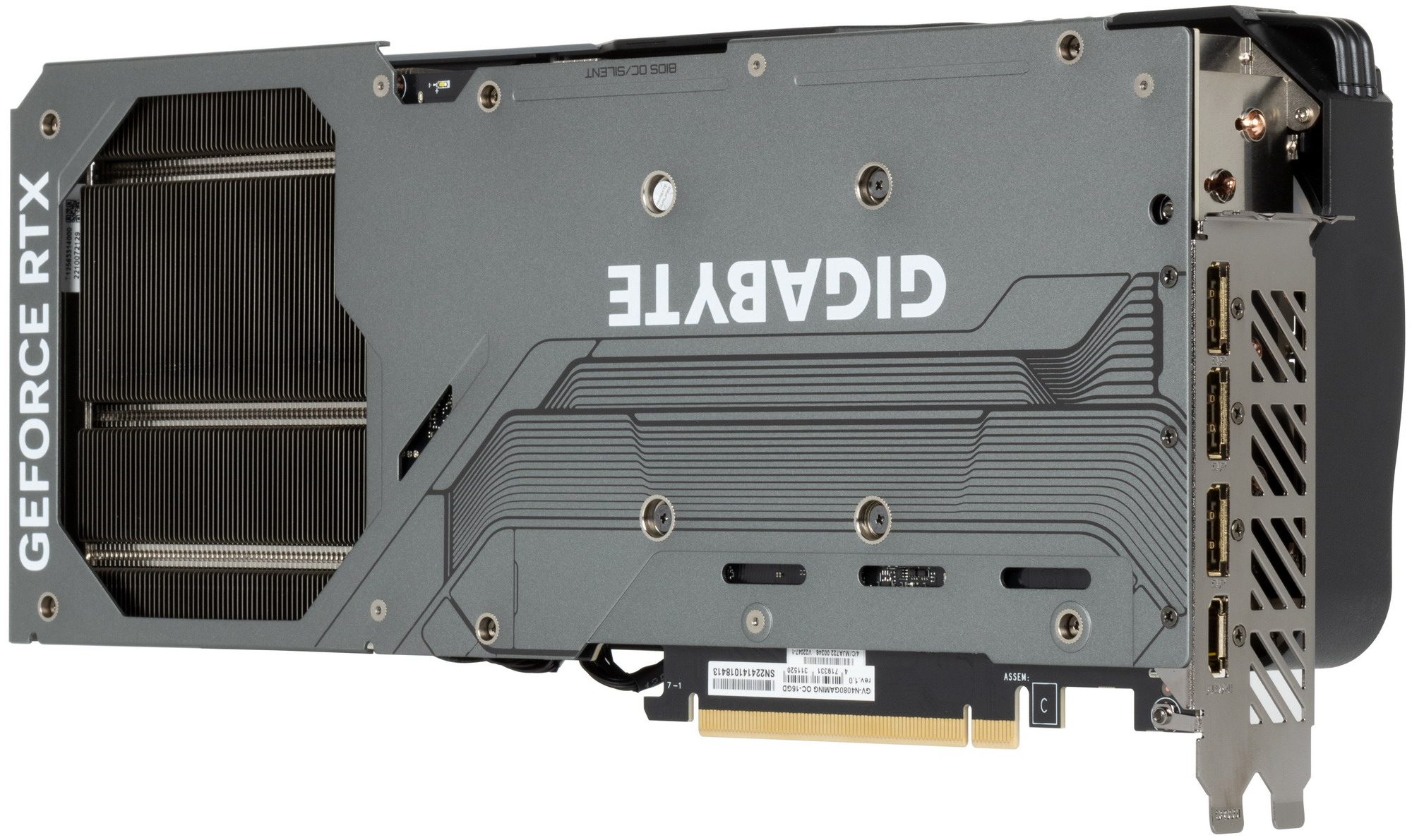

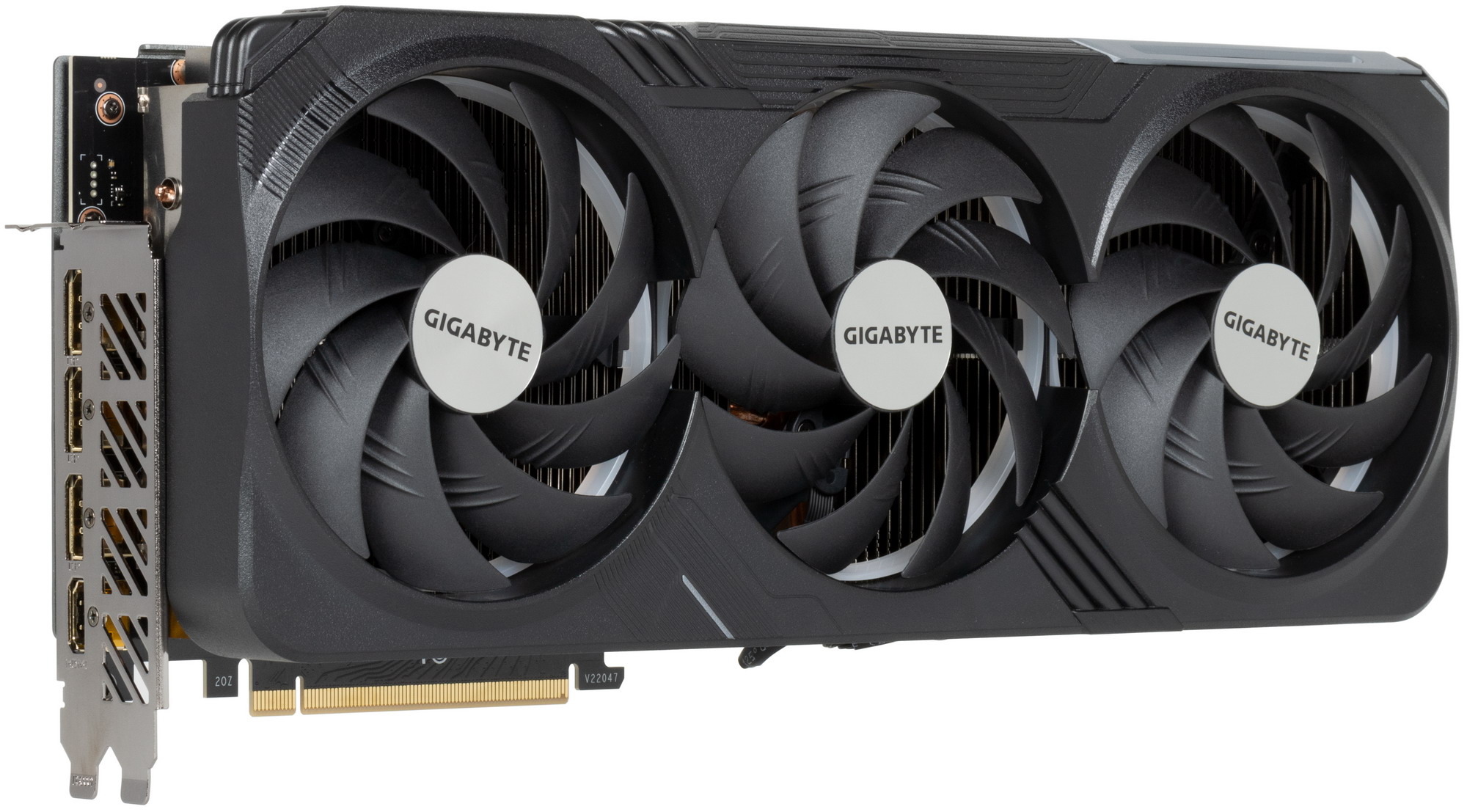

Videocard

GPU

NVIDIA GeForce RTX 4080

Manufacturer and model

Gigabyte (1458 - 40BC)

Chip codename

AD103

Technology

5 nm

Videomemory

16384 MB

Frequency

1400 MHz (1400 MHz) [±0]

Bus Width

256 bit

Bandwidth

716.8 GB/s

GPU frequency

2158 MHz (2205 MHz) [+90]

Shaders

9728 (DX 12 (12_2))

Fillrate

278.7 GPixel/s, 756.4 GTexel/s

Bus speed

PCIe x16 4.0 @ x16 1.1

Connectors

DisplayPort 1.4a x3, HDMI 2.1

Voltage

1.000 V

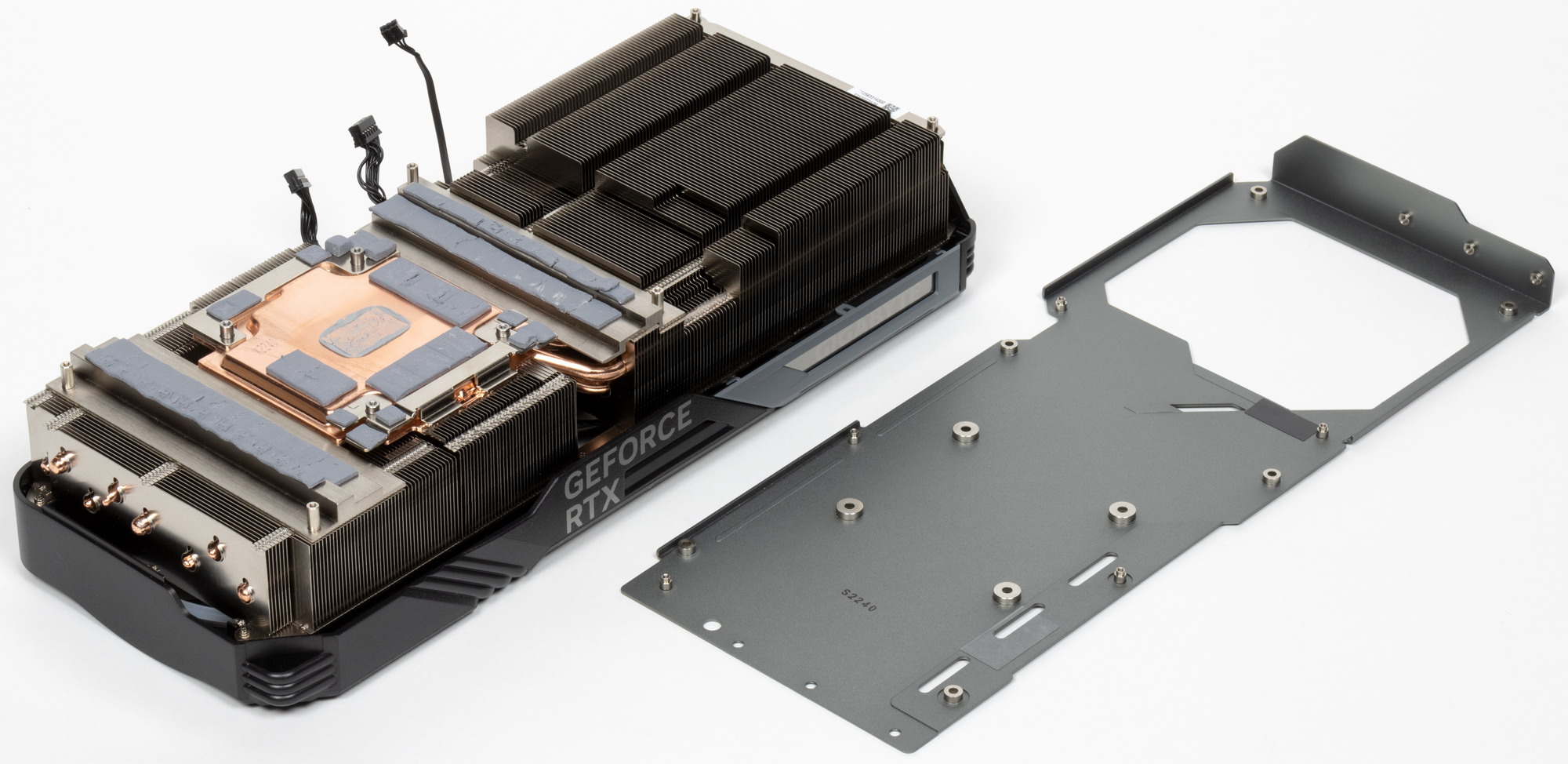

Cooling

Stock

Driver

31.0.15.5186 (NVIDIA 551.86) DCH / Win10 64

GPU-Z version

2.57.0

Audiocard

SupremeFX (7.1, HDA): Codec — S1220 (Realtek ALC1220)

Headphones

HyperX Cloud Core

Case

Lian Li LANCOOL II MESH Performance

Form factor

Mid-Tower

Type

E-ATX, Micro-ATX, Mini-ITX, Standard-ATX

PSU

Seasonic Prime Ultra

Power

1000 W

Efficiency

80+ Gold

Fans

Front

3 x be quiet! SILENT WINGS 3, 3 x ARCTIC P12

Back

1 x ARCTIC F12 PWM PST

Top

2 x ARCTIC F12 PWM PST

Monitors

Model

24.5" GIGABYTE AORUS KD25F

23.6" AOC C24G1

Maximum resolution

1920 x 1080 @ 240 Hz

1920 x 1080 @ 144 Hz

Aspect Ratio

16:9

Brightness

400 cd/m²

250 cd/m²

Contrast

1000:1

3000:1

Connectors

DisplayPort, HDMI

DisplayPort, HDMI, VGA (D-Sub)

Other specifications

Monitor bracket: ONKRON G80; Timings: CVT-RB

Monitor bracket: ONKRON G80; Timings: Native PC

Data Storage

Solid State Disk (SSD)

Kingston KC3000

Capacity

2 TB

Interface

PCI Express 4.0 x4 (NVMe 1.4)

Solid State Disk (SSD)

Kingston KC3000

Capacity

2 TB

Interface

PCI Express 4.0 x4 (NVMe 1.4)

Peripheral

Keyboard

Keycool 84

Mouse

Lamzu Atlantis (Black) @ 1250 DPI; 1 mm LOD; 1000 Hz PR; 6/11

Other

Mousepad: игроман х CustomMade (Lava Light)

Gamepad

Microsoft Xbox Wireless Controller

Other

VR headset: PICO 4

Network Configuration

Connection type

Static + IPoE (Option 82) + PPPoE

Download speed

1 Gbit/s

Upload speed

1 Gbit/s

Connection via

ISP UTP Cat.5e ↔ CPE Mercusys MR90X (OpenWrt)

ISP

Tele-Plus (Surgut)

Internet plan, cost

Free

SpeedTest.net

Other Info

Mercusys MR90X (OpenWrt) ←[2.5GbE TP Cat.7]→ HORACO ZX-SWTGW218AS ←[10GbE DAC SFP+]→ TP-Link TL-SX3008F ←[10GbE 850 nm MM Fiber SFP+]→ HORACO ZX-SWTG124AS ←[4 x 1GbE TP Cat.6 (802.3ad)]→ Redmi AX6S (OpenWrt) Wi-Fi: Intel(R) Wi-Fi 7 BE200 320MHz NIC #2: Intel(R) Ethernet Server Adapter X520-DA2 (Unlocked)

Soft

Microsoft Windows 10 Professional (x64), Version 21H1, Build 19043.1200

Benchmarks

SuperPi / Mod (Calculation Time for 1M)

Version

y-cruncher v0.7.9 Build 9509

Overclocked

5B: 272.051 s / 276.754 s sec

AIDA64 Cache & Memory Benchmark

Screenshot/URL

Modding, customization, additional info

Scripts

xperf.bat & xperf.ahk

startup-setpriority.bat

Devices

UEFI settings

GoInterruptPolicy

Device manager

Configs

"FanControl" userConfig.json

"PowerSettingsExplorer" config.xml

Guides

amitxv / PC-Tuning

djdallmann / GamingPCSetup

Tools

CPU Affinity Mask Calculator

Links

The MarkC Windows 10 + 8.1 + 8 + 7 Mouse Acceleration Fix

Info

pagefile = 12288 MB @ C: / swapfile disabled
Windows Timer Resolution = 0.501 ms
ISLC 1024/1024 MB

bcdedit

bcdedit /set disabledynamictick yes
bcdedit /set useplatformtick yes
bcdedit /deletevalue useplatformclock
bcdedit /set nx AlwaysOff

registry

Windows Registry Editor Version 5.00
[HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows NT\CurrentVersion\Multimedia\SystemProfile]
"SystemResponsiveness"=dword:0000000a
[HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows NT\CurrentVersion\Multimedia\SystemProfile]
"NetworkThrottlingIndex"=dword:000000a
[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\kernel]
"GlobalTimerResolutionRequests"=dword:00000001
[HKEY_LOCAL_MACHINE\SYSTEM\ControlSet001\Control\Session Manager\Memory Management]
"LargeSystemCache"=dword:00000001
[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\mouclass\Parameters]
"MouseDataQueueSize"=dword:00000036
[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management]
"SwapfileControl"=dword:00000000
